Vulcan Freeloader hot water cylinders: why we replace instead of repair

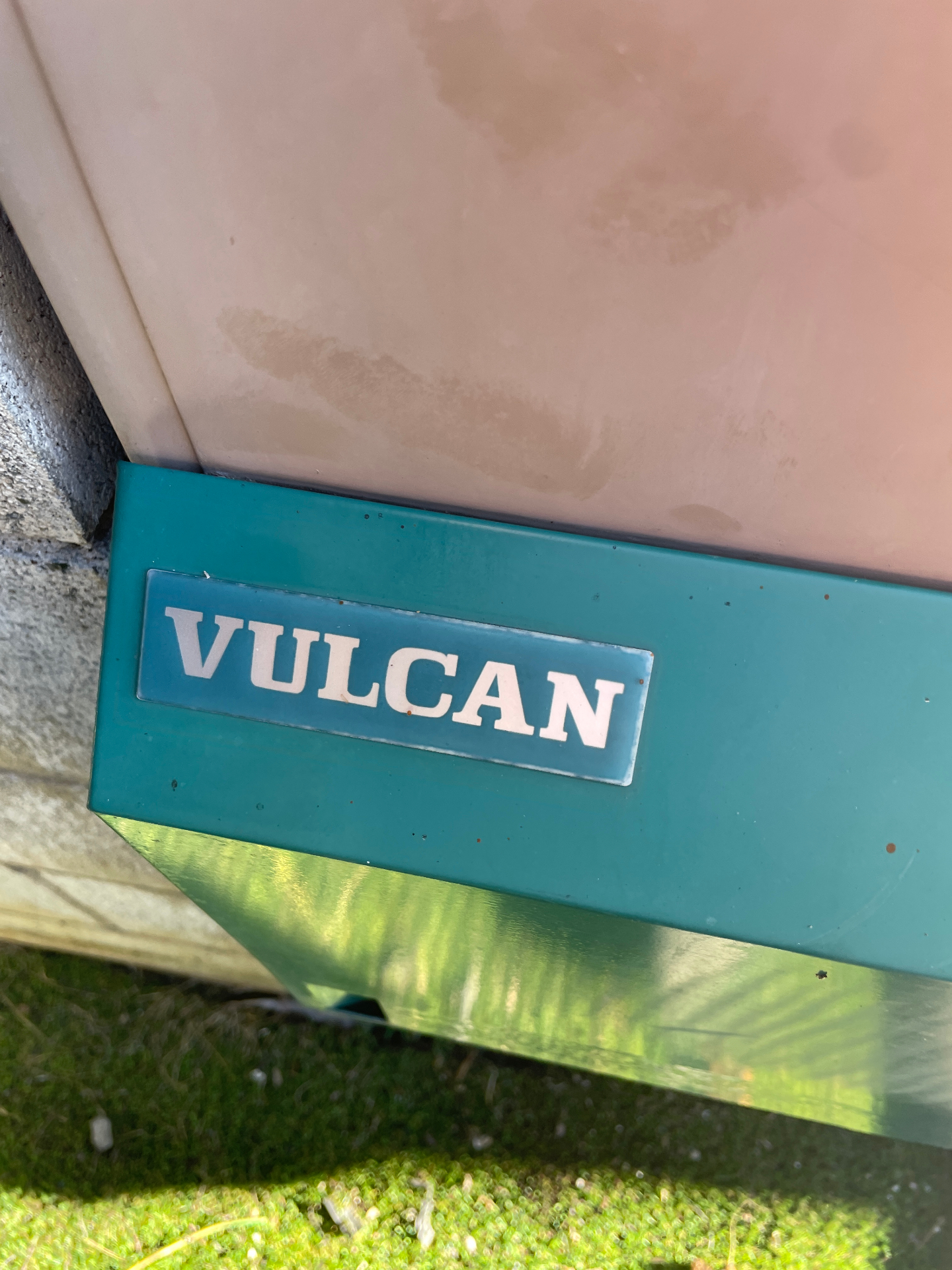

Vulcan is one of the most recognisable hot water brands in New Zealand history. The Freeloader, that unmistakable cream tank with the teal green combustion cover, was manufactured here from the late 1980s through to the mid-2000s and installed in tens of thousands of Kiwi homes, from state houses to villa renovations.

At its peak the Freeloader 180 and 260 were the default gas hot water cylinders across Auckland. If you've got one out the side of a 90s or early-2000s house it's almost certainly a Vulcan.

Vulcan-branded hot water cylinders were discontinued years ago and the Freeloader has been out of production for well over a decade. Genuine replacement parts, gas control valves, burner assemblies, thermocouples, flue components, are effectively gone from the NZ supply chain.

What's on the shelf now is a shrinking pool of generic equivalents and end-of-line stock. When a Freeloader gas valve fails, we're often ringing three or four suppliers to find one, and when we do it's typically $700, $1,000 for the part alone.

By the time you add a thermocouple, pilot assembly, burner clean and 3+ hours of labour, a single repair on a 20-year-old Freeloader is often $1,400 or more, with no warranty on the tank itself and no guarantee we won't be back in six months for the next component.

Pilot won't stay lit, usually the thermocouple, sometimes the gas valve. On older Freeloaders both parts are hard to source.

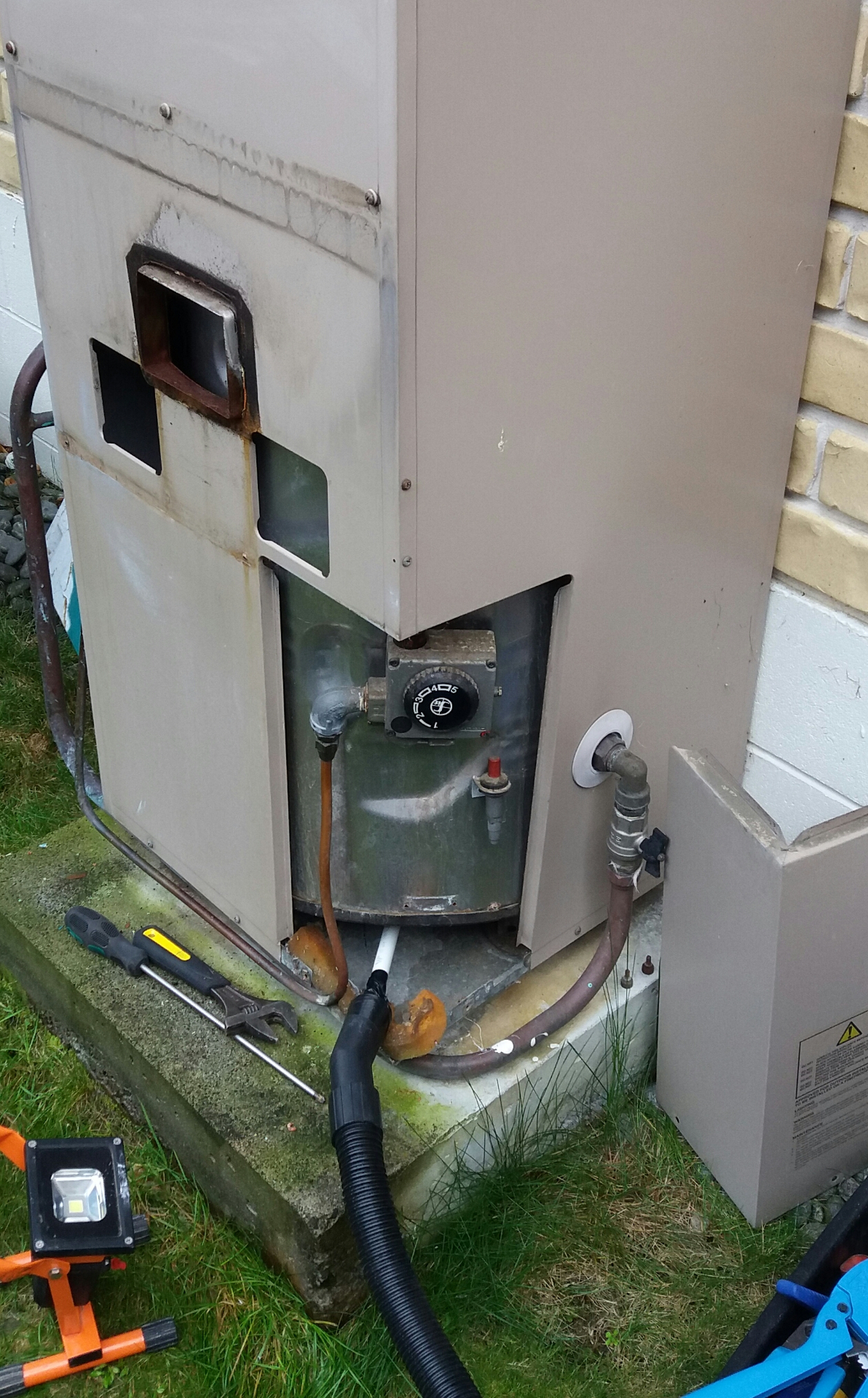

Rust and water at the base, the sacrificial anode is long gone and the tank itself is corroding. This is terminal; no part fixes it.

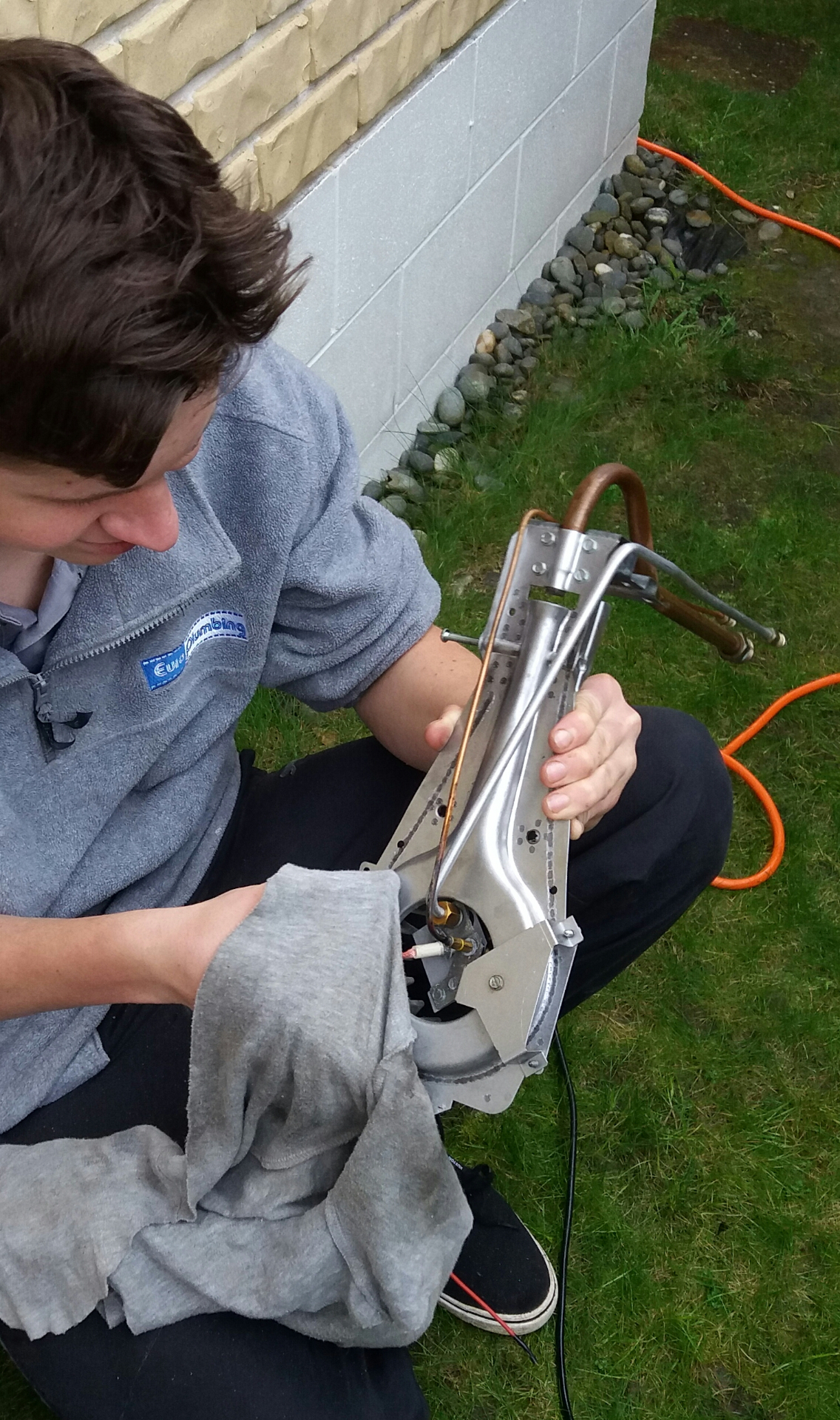

Yellow flames, sooting or a lazy burn, burner is degraded and combustion is unsafe. On a Freeloader this often can't be economically restored.

Rusty hot water at the taps, internal glass lining has broken down. Again, tank replacement, not a repair.

Loud kettling or banging as it fires, heavy sediment in the base. Even a flush is a short-term fix on a tank this old.

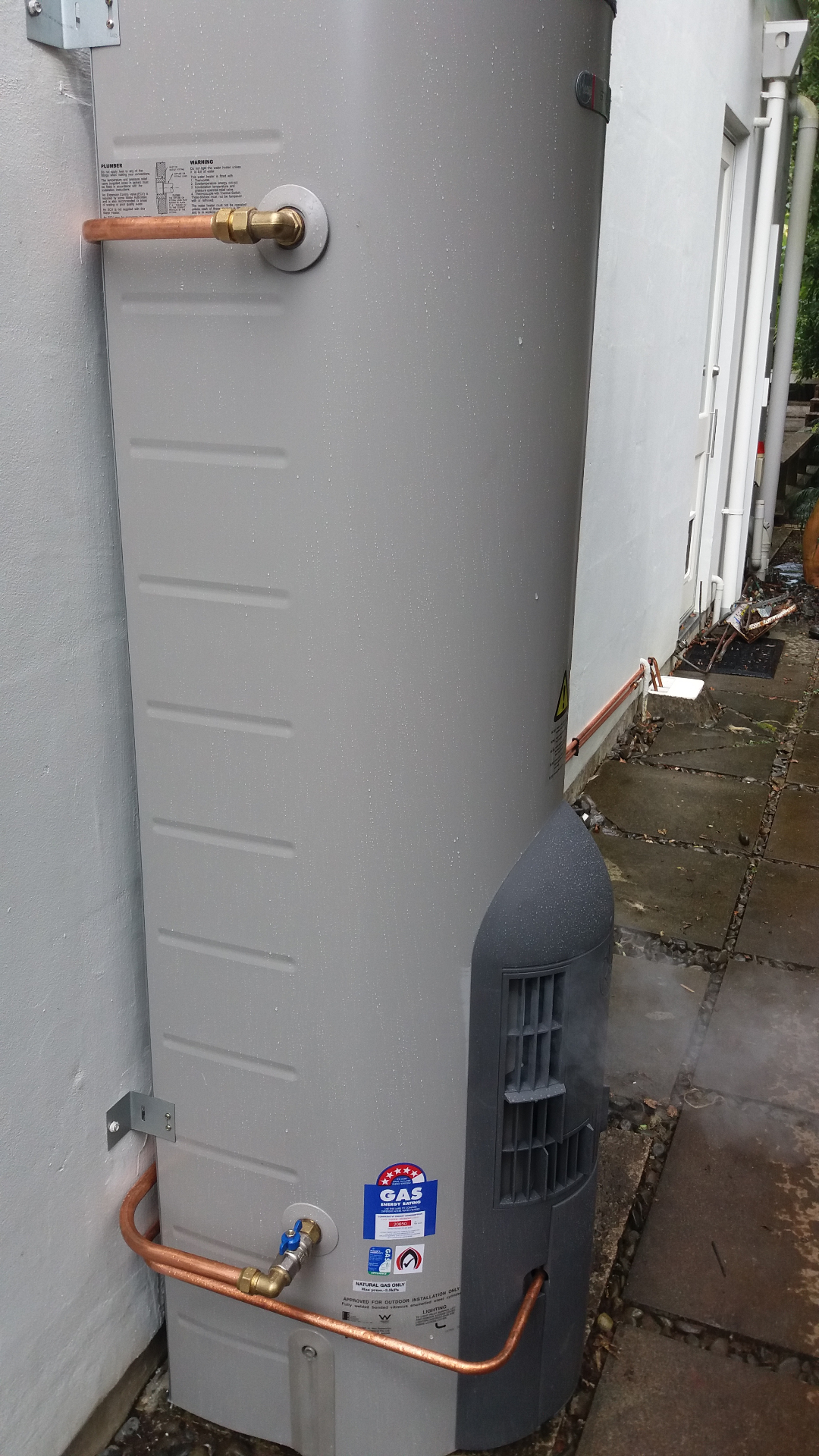

A brand-new Rheem Stellar 130 or 180 supplied and installed in a straight swap for a Vulcan Freeloader typically lands in the same ballpark as a big Freeloader repair, but you get a fresh cylinder, a 10-year manufacturer warranty, a 5-star gas rating and modern parts availability for the next 15+ years.

Rheem is a natural like-for-like replacement in NZ: same footprint options, same outdoor mounting style, same install pattern our team runs every week. The Stellar's powered flue is cleaner and more efficient than the old Freeloader burner, and running costs come down noticeably.

If the property is well-suited to it, a Rinnai Infinity continuous flow is often an even better answer, no tank, no standing losses, hot water on demand. We'll walk you through both options before quoting so you can pick on lifetime cost, not just the sticker price.

Isolate gas and water, drain the old Freeloader (they're heavy, 200kg+ full at the base), disconnect the flue, gas line and copper pipework, and remove.

Set the new Rheem Stellar on a fresh base, re-plumb hot and cold with a modern tempering valve (50°C at the tap per current standards), reconnect gas with a new isolation valve, terminate the flue to updated clearance rules, and pressure-test everything.

Commission the unit, check combustion, and issue a Gas Safety Certificate. Most straightforward Freeloader swaps are done inside a single working day.

Any rust or moisture around the base. Rusty hot water at the taps. Pilot that keeps going out. Yellow flames or sooting on the burner cover. Loud banging or kettling. Any Freeloader over 15 years old, even if it's still running.

Get it swapped on your terms, a planned Vulcan-to-Rheem replacement on a weekday is a fraction of the stress and cost of an emergency callout after the tank has let go and flooded the side of the house.
